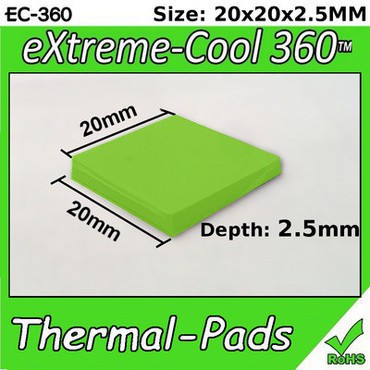

[EC-360™ GREEN] 2.5MM 20x20 Thermalpad 2.5W/mK

Item-No: 147
Weight: 0.003 kg




110+25+50+100+
0.92€0.65€0.55€0.45€0.35€


0.92 €



eXtreme-Cool 360™ Thermal-Pads are high quality Thermoplastic Components with an excellent price-performance ratio.

With an extremely high Thermal Conductivity of 2.5 W/mK they are the perfect solution for an efficient Heat-Transfer in adverse surface conditions in which the use of Thermal Pastes is not applicable.

Thanks to its high Elasticity and Compression-abilities it perfectly adapts to any tiny surface irregularities.
EC-360™ Thermal Pads are available in densities of 0.5 - 5MM.
Areas of Application are majorly the Cooling of RAM, GPU, CPU, North/Southbridge Chips, as well as electrical components like(MOSFETs, regulators, etc.) manufactured from refined thermoplastic Silicon-Polymer-Compounds. The Thermal Pads also are not electrically conductive and therefore double as an insulator.

Notice: You need bigger quantities? Please send us a price offer, we will give you a discount then!


Specifications:

Size 20x20 MM (0.79 x 0.79")
Thickness 2.5 MM (0.10")
Thermal Conductivity >2.5W/mK
Thermal Stability -40 - 200 °C
Density 2.45 g/cm³
Hardness grade 40.0 Shore OO
Expansibility 50%
Tear Resistance 2.942 N/m²
Electrical Stability > 3200 V/mm
