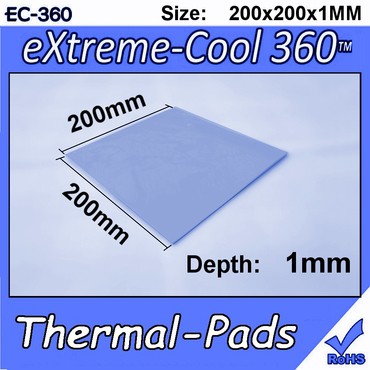

[EC-360™ BLUE] 1MM 200x200 Thermalpad 5W/mK

Item-No: 247
Weight: 0.088 kg


12.18 €


eXtreme-Cool 360™ Thermal-Pads are high quality Thermoplastic Components with an excellent price-performance ratio.

With an extremely high Thermal Conductivity of 5 W/mK they are the perfect solution for an efficient Heat-Transfer in adverse surface conditions in which the use of Thermal Pastes is not applicable.

Thanks to its high Elasticity and Compression-abilities it perfectly adapts to any tiny surface irregularities.
EC-360™ Thermal Pads are available in densities of 0.5 - 5MM.
Areas of Application are majorly the Cooling of RAM, GPU, CPU, North/Southbridge Chips, as well as electrical components like(MOSFETs, regulators, etc.) manufactured from refined thermoplastic Silicon-Polymer-Compounds. The Thermal Pads also are not electrically conductive and therefore double as an insulator.

Attention, Read this before buying!, Thermal Pads generally are NOT ADHESIVE/STICKY! If you need to glue them onto something or use them to attach something, additionally order some of our EC-360™Thermal Adhesive.


Size 200x200 MM (7.88 x 7.88")
Thickness 1.0 MM (0.04")
Thermal Conductivity >5W/mK
Thermal Stability -40 - 200 °C
Density 2.45 g/cm³
Hardness grade 40.0 Shore OO
Expansibility 50%
Tear Resistance 2.942 N/m²
Electrical Stability > 3200 V/mm
